Torsion Tester Feature Comparison
TORSION SPRING TESTER

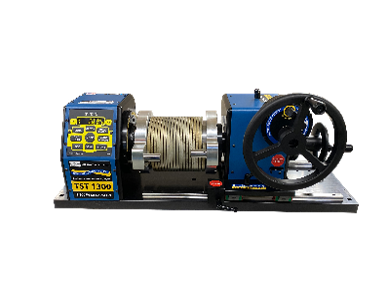

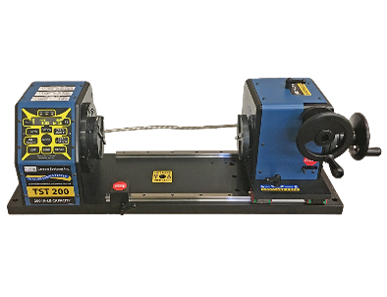

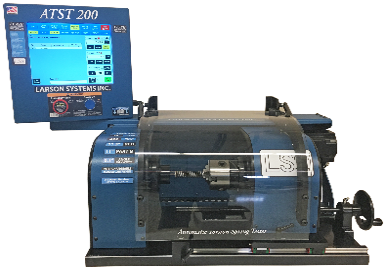

FEATURE COMPARISON		 TST 200 TST 1300 ATST
Torque Measurement ✅ ✅ ✅
Angle Measurement ✅ ✅ ✅
Z-Axis Length Measurement Option N/A OPT ✅
Manual Operation ✅ ✅ N/A
Motorized Operation N/A N/A ✅
Standard Part Length Capability 11.5″ 11.5″ 11.5″
Maximum Part Length Capability 48″ 48″ 24″
Standard Part Diameter Ø Capability 8″ 8″ 8″
Maximum Part Diameter Ø Capability 8″ 10″ 17″
Standard Angle Resolution 0.1° 0.1° 0.1°
Maximum Angle Resolution 0.1° 0.1° 0.1°
Range 1,000,000° 1,000,000° 1,000,000°
Accuracy 0.2° / 3,600° 0.2° / 3,600° 0.2° / 3,600°
Torque Cell – 0.3 in-lb / 3 g-mm / 34 N-mm ✅ ✅ N/A
Torque Cell – 3 in-lb / 35 g-mm / 339 N-mm ✅ ✅ N/A
Torque Cell – 25 in-lb / 288 kg-mm / 2,825 N-mm ✅ ✅ ✅
Torque Cell – 100 in-lb / 1,152 kg-mm / 11,299 N-mm ✅ ✅ ✅
Torque Cell – 200 in-lb / 2,304 kg-mm / 22,597 N-mm ✅ ✅ ✅
Torque Cell – 500 in-lb / 5,761 kg-mm / 56,493 N-mm N/A ✅ ✅
Torque Cell – 1,300 in-lb / 14,978 kg-mm / 146,883 N-mm N/A ✅ ✅
Smart Interchangeable Torque Cartridges OPT OPT OPT
Interchangeable Tooling ✅ ✅ ✅
Custom Tooling Option ✅ ✅ ✅
Universal Tooling Option ✅ ✅ ✅
Deflection Compensation ✅ ✅ ✅
Absolute Zeroing ✅ ✅ ✅
Digital Calibration ✅ ✅ ✅
Battery or AC Powered ✅ ✅ N/A
NIST Traceable Calibration ✅ ✅ ✅
FLASH Touch Screen Interface N/A N/A ✅
Virtually Unlimited Data / Program Storage N/A N/A ✅
Fatigue Testing Option N/A N/A ✅
FACTORY OPTIONS TST 200 TST 1300 ATST
Optional Bed Extension for 24″ Parts ✅ ✅ ✅
Optional Bed Extension for 48″ Parts ✅ ✅ N/A
X-Axis Compression Adjuster Option ✅ ✅ N/A
X-Axis Linear Scale Option ✅ ✅ N/A
TESTER SOFTWARE TST 200 TST 1300 ATST
2 Point with Rate (Torsion) OPT OPT OPT
Limit Lights & Full Statistical Analysis OPT OPT OPT
Calculated Free Angle OPT OPT OPT
Peak Test Mode N/A ✅ OPT
Interchangeable Torque Cartridge Capability OPT OPT OPT
SAFETY FEATURES TST 200 TST 1300 ATST
Test Abort Button (On Screen & Remote) N/A N/A ✅
Fully Interlocked Enclosures N/A N/A ✅
Software Torque Limits N/A N/A ✅
Emergency Stop Button N/A N/A ✅
CONNECTIVITY & PC SOFTWARE TST 200 TST 1300 ATST
Internal RS 232 Capability N/A OPT N/A
RS 232 to Parallel Adapter Cable OPT OPT N/A
Ethernet Port for Network Connectivity N/A N/A ✅
USB Port N/A N/A ✅
Remote Support / Diagnostic Capability N/A N/A ✅
SSS – PC Statistical & Spreadsheet Interface Software OPT OPT OPT
