FLASH 48 Plus
Featuring FLASH Touch Screen Technology

Standard 48″ stroke
240 volt three phase servo drive on 15,000 lbf system
Easy access to emergency shutoff

FLASH 48 Plus

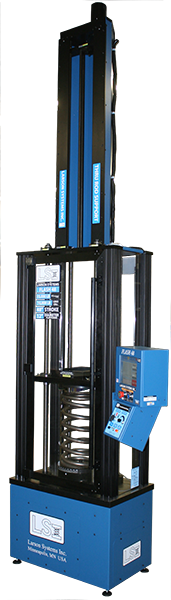

The FLASH 48 Plus is an alternate version of our FLASH 48. With the same 48-inch stroke designed to accommodate large parts with heavy loads, it also comes loaded with Thru-Rod Assembly kit and Tool Rack. It features our four ball screw design for stability with a triple load cell lower platform to prevent off-center loading problems. With a fully enclosed assembly for maximum safety, this tester has a standard platform diameter of 12” and is even capable of being outfitted with any of our Quick Change Load Cells, giving the FLASH 48 Plus an extremely versatile load capacity range from 2 lbf to 15,000 lbf. The Thru-Rod Support Assembly helps to stabilize springs to prevent buckling for repeatable reliable results.

Optional Features:

The FLASH 48 Plus was designed from the ground up to be compatible with a variety of other optional features, like a light curtain guard for additional safety or a center length transducer for very accurate testing of small deflection, high-rate parts, like Belleville washers or wave springs.

Center Length Transducer
The Center Length Transducer is an optional secondary encoder used on the FLASH 48 and FLASH 48 Plus to test small deflection, high-rate springs, like Belleville Washers or wave springs. When activated, the tester will switch over to this encoder to measure length for parts that are shorter than 0.850 inches, giving extremely accurate readings for small parts with high spring rates.

Testing a Belleville Washer with the CLT probe extended

Retracted position, probe flush with upper platform

CLT probe clamp in extended position

Includes Length Deflection Compensation

What is length deflection compensation?
All force/length testing devices, regardless of manufacturer, have additional deflection by the load cell and tester frame which occurs as the spring is loaded. If you buy/use a tester without deflection compensation, measurements might include significant length errors.Spring deflection, also known as spring travel or motion, is the action of a compression spring compressing (being pushed), an extension spring extending (being pulled), or a torsion spring winding (being twisted) when a load is applied or released. This is one characteristic (spring deflection) that is measured by a Larson Systems Spring Tester.

Larson Systems has BUILT-IN Length Deflection Compensation so that the user does not have to calculate and apply length corrections. Most competitors do not have length deflection compensation.

With a Larson Systems product, forget about calculating load cell and frame deflection when testing, we’ve got you covered.

Downloads

Features

Standard Features

- Standard 48″ range (also available with 24″ range)
- Standard 48″ stroke (also available with 24″ stroke)
- Standard 12″ Ø platform with TUL (Twist Under Load)
- Optional 12″ Ø platform without TUL
- Up to 0.0001″ length resolution (0.0005″ standard)
- 2 to 15,000 lbf load capacities
- FLASH Touch Screen Interface
- Adjustable travel / test speed
- Compression and extension testing of force and length
- Integrated Windows 10
- NIST traceable digital calibration
- Built in deflection compensation
- Multiple measurement units (mm, in, lb, kg, N)
Safety Features
- Full interlocked enclosure
- Test abort button
- Easy access to emergency shutoff
- Mechanical overload stops
- Software length / force limits
- Optional light curtain guard for small part tests (safe, quicker changeouts for Belleville or wave springs)
Mechanical Features
- - 240 volt single phase servo drive on 6,000 lbf system (NEMA 6-15 connector plug)
  - 240 volt three phase servo drive on 15,000 lbf system
  - Rigid preloaded linear bearings
  - Sturdy quad ball-screw design
  - Telescoping metal ball screw covers (optional)
  - Triple load cell lower platform for maximum off-center load capacity (FLASH 48 load cells only)
  - Screw driven thru-rod option
  - Smart interchangeable load cells
  - Up to 6″ Ø thru-rod capability
  - Quick Change Load Cell capability
  Connectivity
  - Ethernet port for PC network access
  - USB for easy printing / software updates
  - RS 232
  - Automation interface
  - Remote support / diagnostic capability via the internet

Force Specifications

FLASH 48 Load Cells

Load Cell Capacity	Standard Resolution
Load Cell Capacity	0-20% FS	20-100% FS
500 lbf	0.01 lbf	0.1 lbf
227 kg	0.005 kg	0.05 kg
2,224 N	0.05 N	1 N
1,000 lbf	0.02 lbf	0.2 lbf
454 kg	0.01 kg	0.1 kg
4,448 N	0.1 N	1 N
2,000 lbf	0.05 lbf	0.5 lbf
907 kg	0.02 kg	0.2 kg
8,896 N	0.2 N	2 N
3,000 lbf	0.1 lbf	1 lbf
1,361 kg	0.05 kg	0.5 kg
13,345 N	0.5 N	5 N
6,000 lbf	0.2 lbf	2 lbf
2,722 kg	0.1 kg	1 kg
26,690 N	1 N	10 N
10,000 lbf	0.2 lbf	2 lbf
4,536 kg	0.1 kg	1 kg
44,482 N	1 N	10 N
15,000 lbf	0.5 lbf	5 lbf
6,804 kg	0.2 kg	2 kg
66,723 N	2 N	20 N

Quick Change Load Cells

Load Cell Capacity	Standard Resolution		Load Cell Capacity	Standard Resolution
Load Cell Capacity	0-20% FS	20-100% FS	Load Cell Capacity	0-20% FS	20-100% FS
2 lbf	0.0001 lbf	0.001 lbf	550 lbf	0.01 lbf	0.1 lbf
907 g	0.02 g	0.2 g	249 kg	0.005 kg	0.05 kg
8.9 N	0.0002 N	0.002 N	2,447 N	0.05 N	1 N
11 lbf	0.0002 lbf	0.002 lbf	750 lbf	0.02 lbf	0.2 lbf
5 kg	0.1 kg	1 g	340 kg	0.01 kg	0.1 kg
49 N	0.001 N	0.01 N	3,336 N	0.1 N	1 N
22 lbf	0.0005 lbf	0.005 lbf	1,000 lbf	0.02 lbf	0.2 lbf
10 kg	0.2 kg	2 g	454 kg	0.01 kg	0.1 kg
98 N	0.002 N	0.02 N	4,448 N	0.1 N	1 N
66 lbf	0.001 lbf	0.01 lbf	1,500 lbf	0.1 lbf	1 lbf
30 kg	0.5 kg	5 g	680 kg	0.05 kg	0.5 kg
294 N	0.005 N	0.05 N	6,672 N	0.5 N	5 N
110 lbf	0.002 lbf	0.02 lbf	2,000 lbf	0.1 lbf	1lbf
50 kg	0.001 kg	0.01 kg	907 kg	0.05 kg	0.5kg
489 N	0.01 N	0.1 N	8,896 N	0.5 N	5 N
200 lbf	0.005 lbf	0.05 lbf
91 kg	0.002 kg	0.02 kg
890 N	0.02 N	0.2 N

Accuracy = ± Full Scale Resolution x 2

Parts and Accessories

Tester

Description	Part Number
FLASH 48 (6,000 lbf Whisper Drive)	050-0000-0147-00	Get a Quote
FLASH 48 (15,000 lbf Whisper Drive)	050-0000-0147-01	Get a Quote

Accuracy Options

Description	Part Number
Center Length Transducer	025-0000-0298-01	Get a Quote
High Resolution Length	025-1000-0234-02	Get a Quote

Factory Options

Description	Part Number
Sorter / Automation Interface Port	025-0000-0299-00	Get a Quote
Telescoping Metal Ball Screw Covers		Get a Quote

FLASH Tester Software

Click here for more info

Description	Part Number
Basic Software Package	050-1000-0039-00	Get a Quote
Extra Software Package	050-1000-0039-01	Get a Quote
Pro Spring Software Package	050-1000-0039-02	Get a Quote
Fatigue Testing Software Package	050-1000-0039-03	Get a Quote
Pro Material Software Package	050-1000-0039-04	Get a Quote
Pro Ultimate Software Package	050-1000-0039-05	Get a Quote

Load Cells

Description	Part Number
500 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-03	Get a Quote
1,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-02	Get a Quote
2,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-01	Get a Quote
3,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-00	Get a Quote
6,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-06	Get a Quote
10,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-07	Get a Quote
15,000 lbf Interchangeable Load Cell (12" Ø platform with Twist Under Load)	025-0000-0262-09	Get a Quote
500 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-16	Get a Quote
1,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-14	Get a Quote
2,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-15	Get a Quote
3,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-10	Get a Quote
6,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-11	Get a Quote
10,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-12	Get a Quote
15,000 lbf Interchangeable Load Cell (12" Ø platform)	025-0000-0262-17	Get a Quote
2 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-00	Get a Quote
11 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-01	Get a Quote
22 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-02	Get a Quote
66 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-03	Get a Quote
110 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-04	Get a Quote
200 lbf Quick Change Smart Interchangeable Load Cell	025-0000-0814-05	Get a Quote
550 lbf Quick Change Smart Interchangeable Load Cell (6" Ø platform)	025-0000-0814-08	Get a Quote
750 lbf Quick Change Smart Interchangeable Load Cell (6" Ø platform)	025-0000-0814-09	Get a Quote
1,000 lbf Quick Change Smart Interchangeable Load Cell (6" Ø platform)	025-0000-0814-10	Get a Quote
1,500 lbf Quick Change Smart Interchangeable Load Cell (6" Ø platform)	025-0000-0814-11	Get a Quote
2,000 lbf Quick Change Smart Interchangeable Load Cell (6" Ø platform)	025-0000-0814-12	Get a Quote
Quick Change Base Assembly (Required to use Quick Change Load Cells)	025-0000-0815-01	Get a Quote
2" Platform, 5/8-18 to 5/16-18 Adapter	018-0000-2029-00	Get a Quote

Accessories

Description	Part Number
Extension Spring Clevis	025-0000-0192-00	Get a Quote

Printer Options

Description	Part Number
Inkjet Printer (with driver install)	025-0000-0464-01	Get a Quote
Laser Printer (with driver install) B & W	025-0000-0464-03	Get a Quote
Laser Pro Printer (with driver install) B & W	025-0000-0464-04	Get a Quote

Installation / Training

Description	Part Number
On-Site Installation & Training	100-0000-0006-01	Get a Quote

Standard Resolution	High Resolution*
0.0005 in (± 0.001 in)	0.0001 in (± 0.0005 in)
0.01 mm (± 0.02 mm)	0.001 mm (± 0.01 mm)
*Requires High Resolution Length option 025-1000-0234-02
